Zexin’s solar charger is a portable, reliable and convenient power solution for a wide range of camping, trekking and a number of other off-grid applications.
Accessories (1 year warranty)
12/24V adaptive solar charge controller (LCD display) with special crocodile clips for battery connection
5m extension cable (Anderson connector)
ELECTRICAL CHARACTERISTICS:
| STC | Portable SMF36OM-24 | Portable SMF175M-12 | Portable SMF100S-12 |
| Maximum Power(P.max ) | 360 | 175 | 100 |
| Maximum Power Voltage (Vmp ) | 39.8 | 19.5 | 19 |
| Maximum Power Current(Lmp ) | 9.05 | 8.98 | 5.27 |
| Open-circuit Voltage (Voc) | 48.3 | 23.9 | 23.5 |
| Short-circuit Current (lsc ) | 9.57 | 9.5 | 5.67 |
| Operating Temperature | -40 °C to 85 °C | ||
| Maximum System Voltage | 6000 vDC (IEC) | ||
| Maximum Series Fuse Rating | 20A | ||
| Application Class | Class A | ||
| Power Tolerance | 0/+5 w | ||
MECHANICAL CHARACTERISTICS:
| Product | Portable SMF360M-24 | Portable SMF175M-12 | Portable SMF100S-12 |
| Solar Cell | Mono (6 inches) | Mono (6 inches) | Mono (5 inches) |
| No.of Cells | 72 | 36 | 36 |
| Folded Dimensions | 670x540x35 mm | 670×540×18 mm | 550x440x18 mm |
| Unfolded Size | 1340x2030x5 mm | 670×2030×5 mm | 550x1500x5 mm |
| Weight | 9.5 kgs | 5.0 kgs | 3.5 kgs |
| Backsheet | Black | ||
| Material | Waterproof Nylon Fabric | ||
| Connector | Anderson Plugs | ||

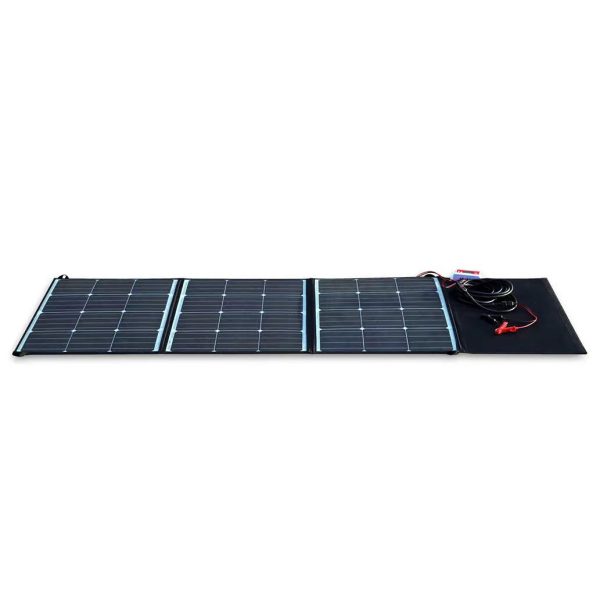

Unfolded Size Detail Image：
