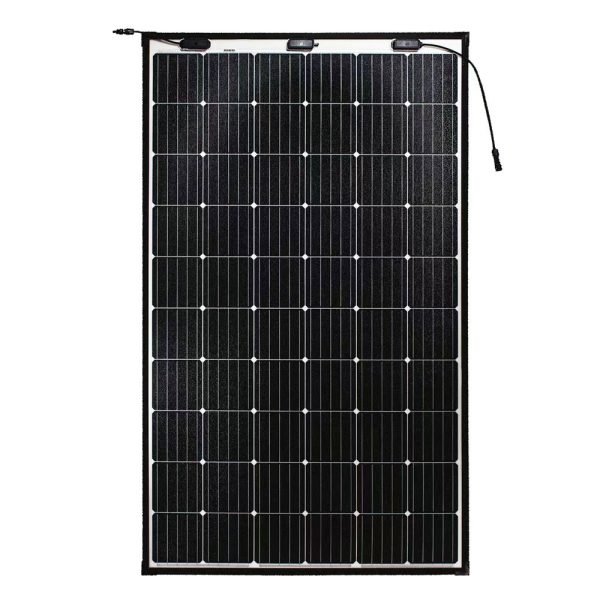

Solar module (also called solar panel) is a core part of solar power systems and the most important part of solar power systems. Its role is to convert solar energy into electrical energy, or send it to a battery for storage, or to drive the load.
A solar panel’s effectiveness depends on the size and quality of the solar cell and the transparency of the protective cover/glass.
Its Merits: High efficiency, Long life, Easy installation
ELECTRICAL CHARACTERISTICS:
| STC | SMF185M-4X09uw | SMF100S-4x9uw | SMF90S-4x8uw |
| Maximum Power(P.max ) | 185 | 100 | 90 |
| Maximum Power Voltage (Vmp ) | 19.9 | 18.9 | 16.7 |
| Maximum Power Current(Lmp ) | 9.3 | 5.29 | 5.38 |
| Open-circuit Voltage (Voc) | 24.1 | 22.5 | 21.1 |
| Short-circuit Current (lsc ) | 9.78 | 5.75 | 5.64 |
| Module Efficiency (%) | 17.4 | 15 | 15.1 |
| Operating Temperature | -40 °C to 85 °C | ||
| Maximum System Voltage | 1000 vDC (IEC) | ||
| Maximum Series Fuse Rating | 20A | ||
| Application Class | Class A | ||
| Power Tolerance | 0/+5 w | ||
MECHANICAL CHARACTERISTICS:
| Product | SMF185M-4X09uw | SMF100S-4x9uw | SMF90S-4x8uw |
| Solar Cell | Mono (6 inches) | Mono (5 inches) | Mono (5 inches) |
| No.of Cells | 36(4×09) | 36 (4 xo9) | 32(4x 08) |
| Module Dimensions | 1520×700×2 mm | 1219x546x2 mm | 1092×546×2 mm |
| Weight | 3.5 kgs | 1.9 kgs | 1.7 kgs |
| Backsheet | White | ||
| J-box | 68 rated (each j-box have one bypass diodes) | ||
| Output Cables | Photovoltaic technology cable 4.0 mm 2 , (+)450 / (-)450 mm | ||
| Connector | MC4 compatible | ||
