Main Features
•Higher output power
•Certificated to withstand severe environmental conditions
•Less shading effect
•Lower temperature coefficient
•Excellent low irradiance performance
•Better mechanical loading tolerance
•Safety for fire risk (Class A,Tested in TUV)
•Excellent PID resistance
•Warranted reliability and stringent quality assurances well beyond certified requirements

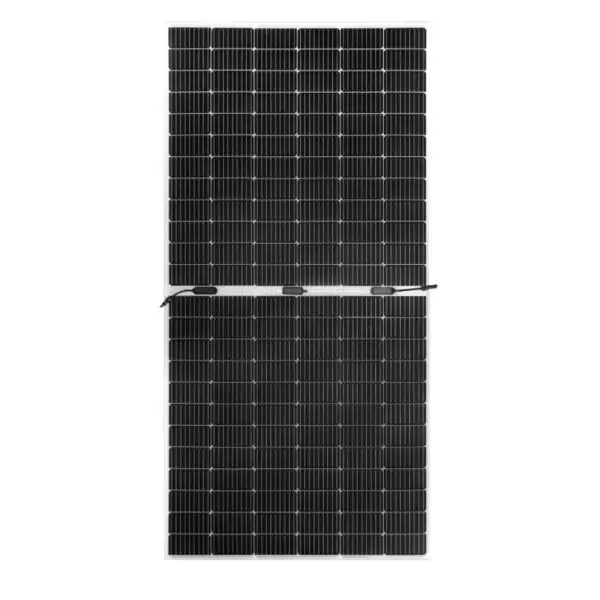

Ultra-light:
Glass free module weighs 7.2 kg，70%lighter thanconventional glass modules.
Fast-Installation:
Through “Quick-Bonding”installation,eArcrequires no penetration, reduces time on roof by 40% and eliminatesthe use of mounting hardware.
Safety:
Seamless integration with underlying installation surface,ensuring the waterproof performance and safety performance of theroof.
Durable:
eArc is the first glassless module to pass the samedurability tests as conventional glass modules,including IEC61215:2016，IEC61730:2016 and UL1703 (USA). eArc has alsopassed PID,salt mist and ammonia corrosion tests.
ELECTRICAL CHARACTERISTICS:
| STC | SMF425F-6x24Uw | SMF430F-6X24UW |
| Maximum Power(P.max ) | 425 | 430 |
| Maximum Power Voltage (Vmp ) | 41.8 | 42 |
| Maximum Power Current(Lmp ) | 10.17 | 10.24 |
| Open-circuit Voltage (Voc) | 49.6 | 49.8 |
| Short-circuit Current (lsc ) | 10.67 | 10.74 |
| Module Efficiency (%) | 19.2 | 19.4 |
| Operating Temperature | -40 ℃ to +85℃ | |
| Maximum System Voltage | 1000 VDC (IEC) | |
| Maximum Series Fuse Rating | 20 A | |
| Application Class | Class A | |
| Power Tolerance | 0/+5 w | |
STC: Irradiance 1000W/m2,cell temperature 25 C，AM=1.5. Tolerances of P.max, Voc and lsc are within 土5%
| NMOT | SMF425F-6x24Uw | SMF430F-6X24UW |
| Maximum Power(Pmax ) | 321.4 | 325.1 |
| Maximum Power Voltage (Vmp ) | 38.6 | 38.8 |
| Maximum Power Current(lmp ) | 8.33 | 8.38 |
| Open-circuit Voltage (Voc) | 46.6 | 46.8 |
| Short-circuit Current(Lsc) | 8.64 | 8.69 |
NMOT: Irradiance 80oW/m 2 , Ambient temperature 20 ℃ ,AM=1.5,Wind speed 1 m/s.
MECHANICAL CHARACTERISTICS:
| Solar Cell | Monocrystalline silicon(166mm half cell) |
| No.of Cells | 144(6×24) |
| Module Dimensions | 2120×1046×2 mm |
| Weight | 7.2kg |
| Backsheet | White |
| Frame | Frameless |
| J-box | IP 68 rated |
| Output Cables | Photovoltaic technology cable 4.0 mm 2 , (+)100/(-)100 mm |
| Connector | MC4 compatible |
PACKAGING CONFIGURATION:
| Item | 20′ GP | 40′ HC |
| Module per pallet | 66+40 | 66 |
| Pieces per container | 530 | 1320 |
