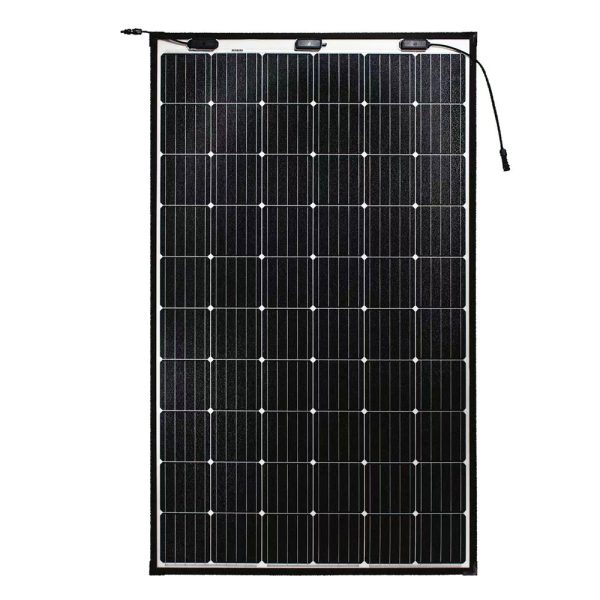

Solar module (also called solar panel) is a core part of solar power systems and the most important part of solar power systems. Its role is to convert solar energy into electrical energy, or send it to a battery for storage, or to drive the load.
A solar panel’s effectiveness depends on the size and quality of the solar cell and the transparency of the protective cover/glass.
Its Merits: High efficiency, Long life, Easy installation
Ultra-light:
Glass free module weighs 8.6 kg，70% lighter thanconventional glass modules.
Fast-Installation:
Through “Quick-Bonding”installation,eArcrequires no penetration, reduces time on roof by 40% and eliminatesthe use of mounting hardware.
Safety:
Seamless integration with underlying installation surface,ensuring the waterproof performance and safety performance of theroof.
Durable:
eArc is the first glassless module to pass the samedurability tests as conventional glass modules,including IEC61215:2016,IEC61730:2016 and UL61730 (USA). eArc has alsopassed PID, salt mist level 8 tests.
ELECTRICAL CHARACTERISTICS:
| STC | SMF520J-12X12UW |
| Maximum Power(P.max ) | 520 |
| Maximum Power Voltage (Vmp ) | 42.3 |
| Maximum Power Current(Lmp ) | 12.31 |
| Open-circuit Voltage (Voc) | 49.5 |
| Short-circuit Current (lsc ) | 13.56 |
| Module Efficiency (%) | 19.3 |
| Operating Temperature | -40 °C to 85 °C |
| Maximum System Voltage | 1500 vDC (IEC) |
| Maximum Series Fuse Rating | 25A |
| Application Class | Class A |
| Power Tolerance | 0/+5 w |
STC: Irradiance 1000W/m2,cell temperature 25 C，AM=1.5. Tolerances of P.max, Voc and lsc are within 土5%
| NMOT | SMF520J-12X12UW |
| Maximum Power(Pmax ) | 429.2 |
| Maximum Power Voltage (Vmp ) | 41.8 |
| Maximum Power Current(lmp ) | 10.26 |
| Open-circuit Voltage (Voc) | 49.8 |
| Short-circuit Current(lsc) | 10.82 |
NMOT: Irradiance 80oW/m 2 , Ambient temperature 20 ℃ ,AM=1.5.Wind speed 1 m/s.
MECHANICAL CHARACTERISTICS:
| Solar Cell | Monocrystalline silicon(182mm half cell) |
| No.of Cells | 144(12×12) |
| Module Dimensions | 2246×1197×2 mm |
| Weight | 8.6kg |
| Backsheet | White |
| Frame | Frameless |
| J-box | IP 68 rated |
| Output Cables | Photovoltaic technology cable 4.0 mm 2 , (+)450 / (-)450 mm |
| Connector | MC4 compatible |
PACKAGING CONFIGURATION:
| Item | 20′ GP | 40′ HC |
| Module per pallet | 66 | 66 |
| Pieces per container | 264 | 1122 |
