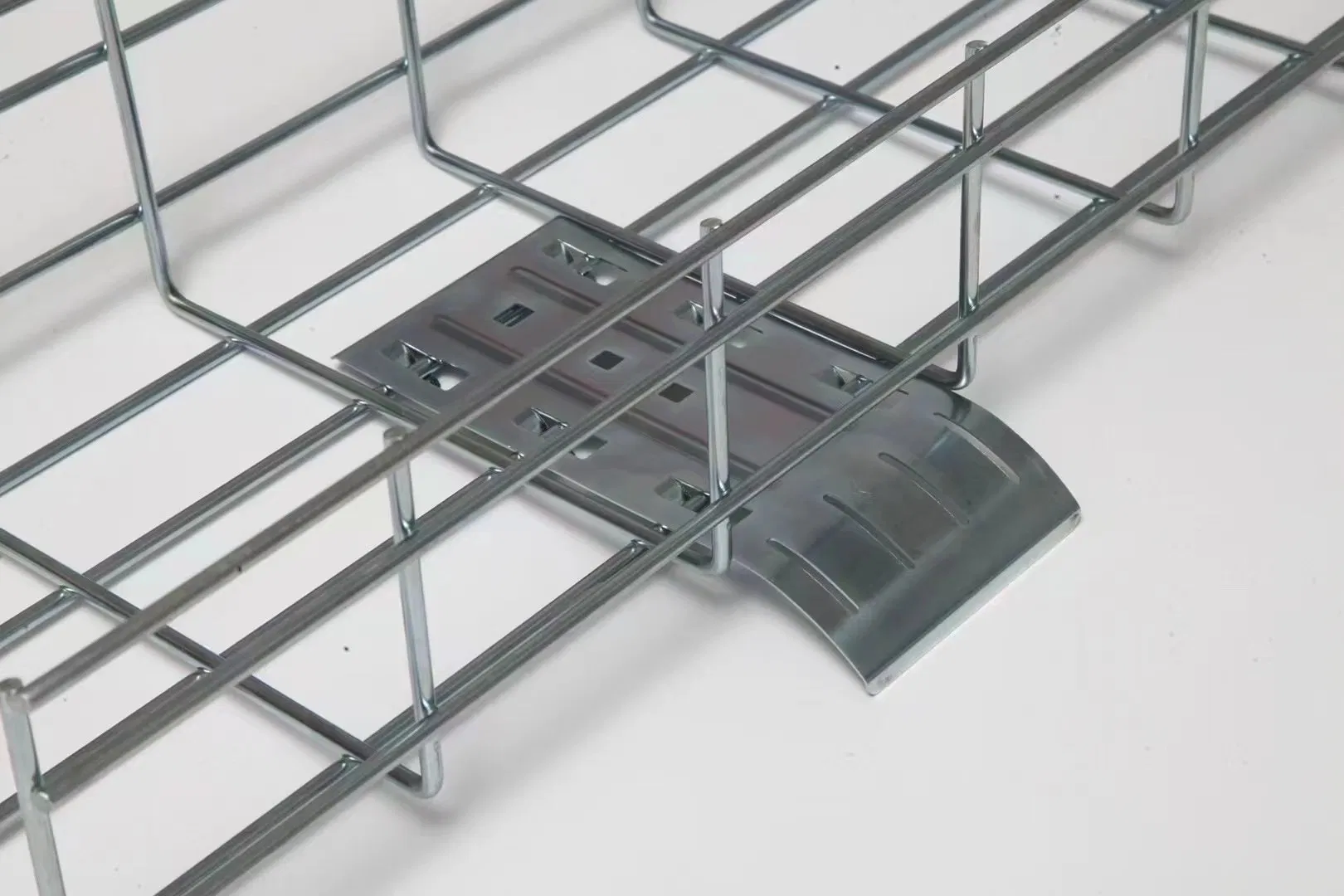

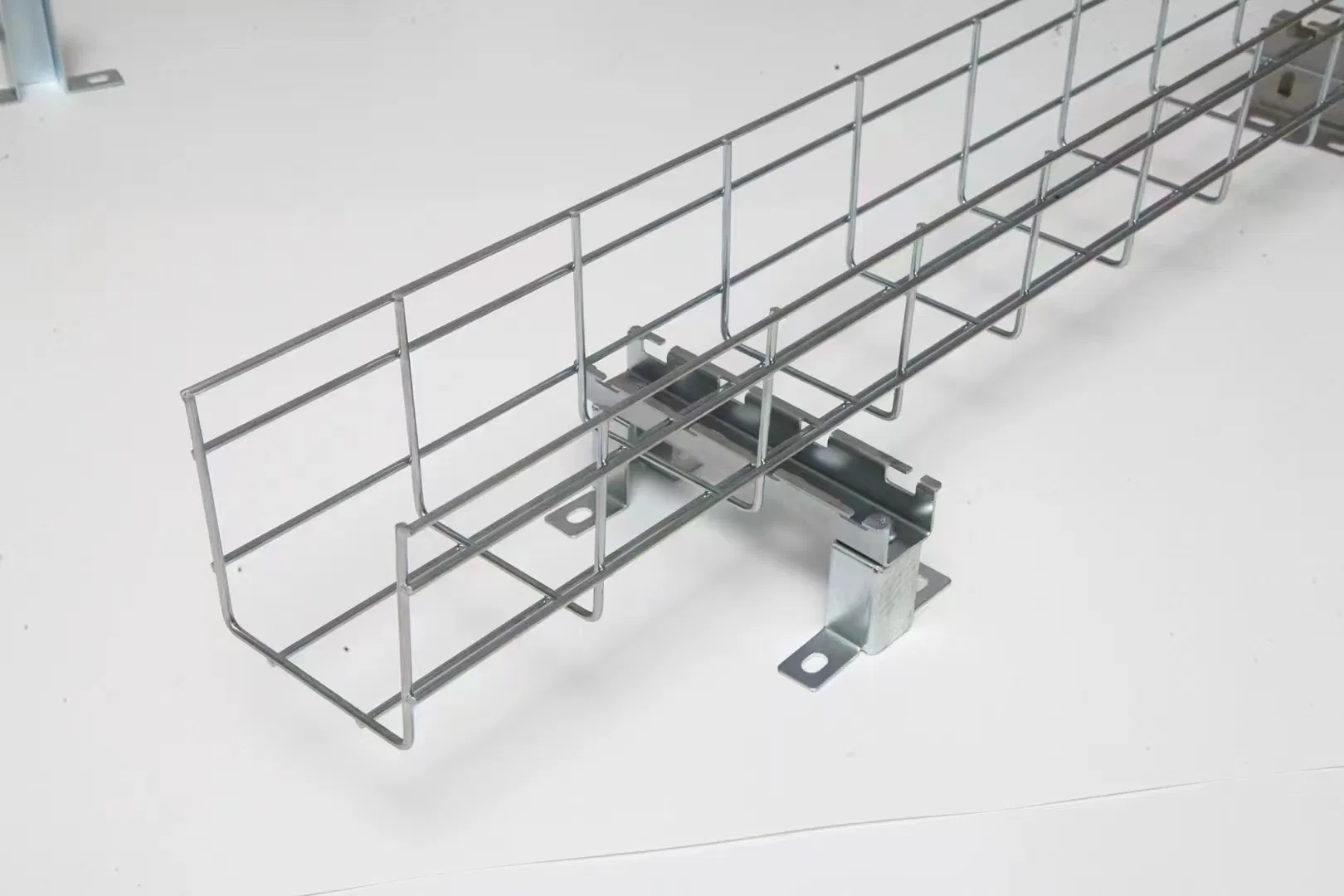

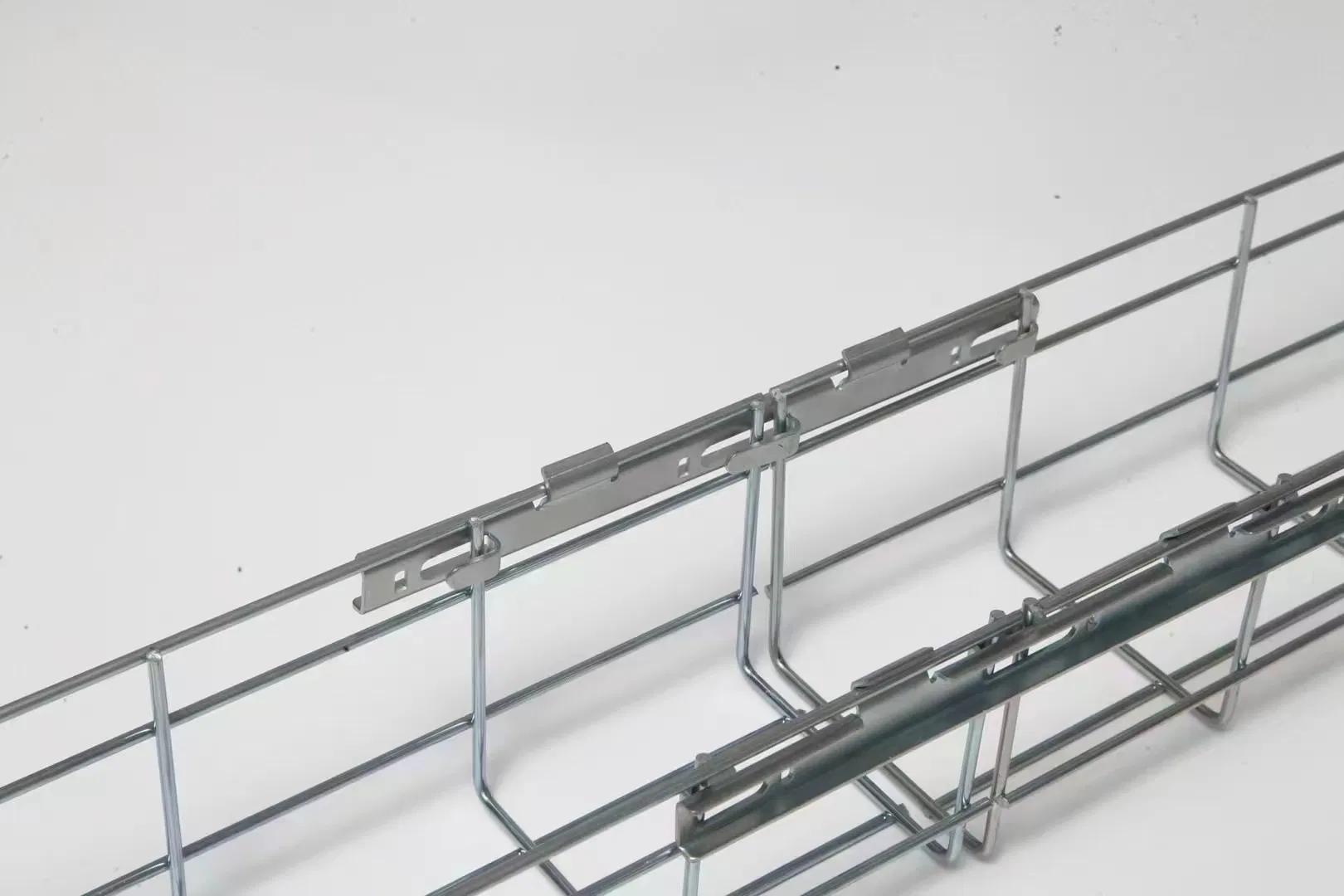

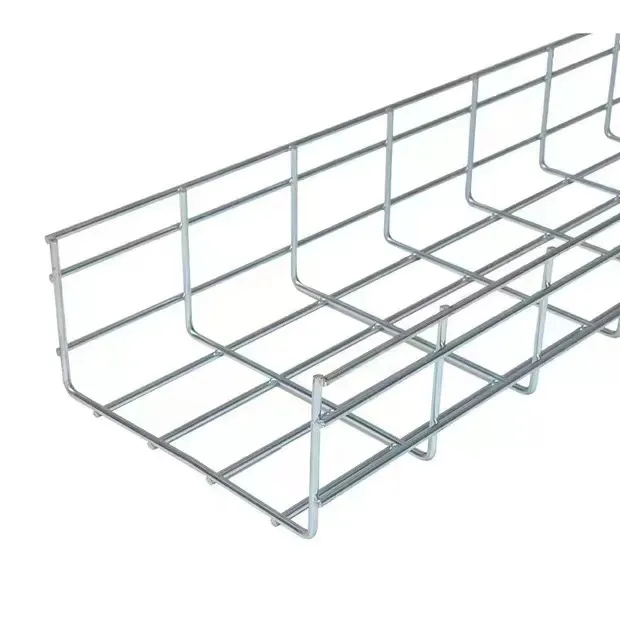

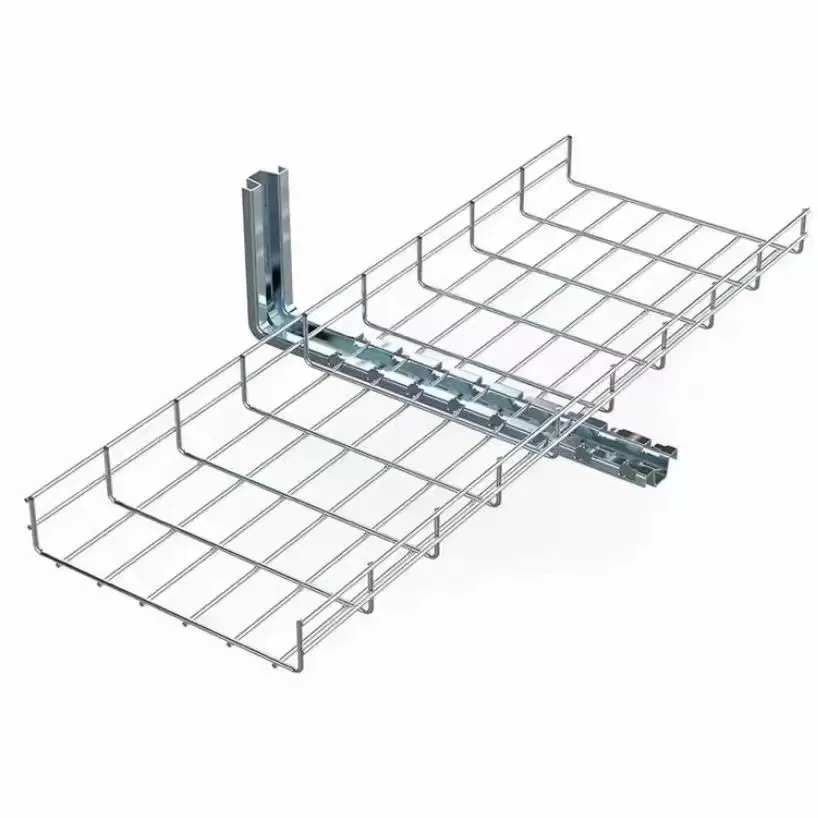

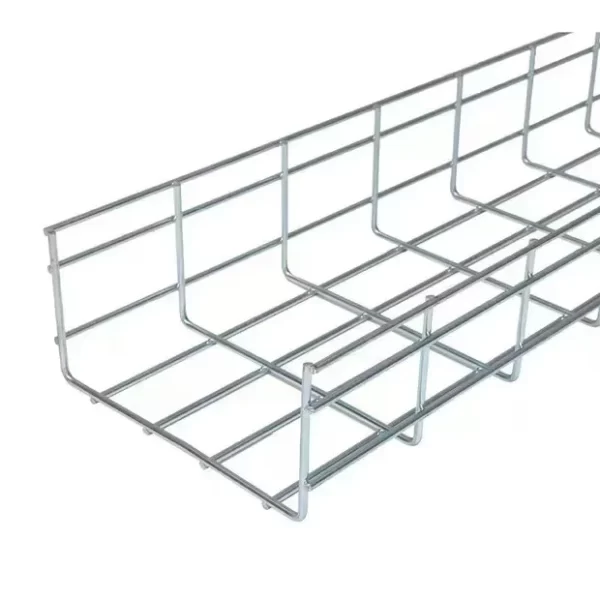

Wire Mesh Cable Tray

Wire Mesh Cable Tray Product Profile

1. Product Overview

Our wire mesh cable tray is a high-quality, versatile cable management solution designed to meet various industrial and commercial requirements. It is made of steel, which provides a solid foundation for reliable cable support.

2. Applications

Industrial Settings: Ideal for factories, power plants, and chemical plants. In factories, it can be used to organize cables for machinery, ensuring a tidy and safe working environment. In power plants, it can support high-voltage cables, and its corrosion-resistant properties make it suitable for the harsh chemical environments of chemical plants.

Commercial Buildings: Used in office buildings, shopping malls, and hospitals. In office buildings, it helps in neatly arranging data and electrical cables, facilitating easy maintenance. In hospitals, its dustproof and antimagnetic features are crucial for ensuring the proper functioning of medical equipment.

Telecommunication Installations: Supports communication cables, allowing for efficient signal transmission. Its lightweight and easy – installation features make it a preferred choice for quickly setting up cable systems in telecommunication towers and data centers.

3. Advantages

Antimagnetic: Ensures that the cable tray does not interfere with the magnetic fields of sensitive equipment, such as medical devices or communication systems. This is especially important in environments where magnetic interference could disrupt the normal operation of equipment.

Easy Installation: With its lightweight design, it can be easily handled and installed by a small team. The simple structure of the wire mesh allows for quick attachment to support structures, reducing installation time and labour costs.

Light Weight: Compared to some other cable tray materials, our wire mesh cable tray is lightweight, which not only eases installation but also reduces the overall load on the building structure. This makes it suitable for use in a variety of building types, including those with weight-bearing limitations.

Dustproof: The wire mesh design helps to prevent dust from accumulating on the cables. This is beneficial in maintaining the performance and lifespan of the cables, as dust can cause electrical problems over time.

Corrosion Resistance: Thanks to the hot-dip galvanizing surface treatment, the cable tray has excellent corrosion resistance. It can withstand exposure to moisture, chemicals, and other corrosive elements, ensuring a long service life even in harsh environments.

4. Product Details

Material

Carbon Steel: Our wire mesh cable tray is made of carbon steel, which offers high strength and durability. Carbon steel provides a reliable base for the cable tray to support heavy loads of cables.

Surface Finish

Hot – Hotdip galvanized: This is the primary surface treatment method. Hot-dip galvanizing involves dipping the steel cable tray into a bath of molten zinc. This process creates a thick, protective zinc layer on the surface of the steel. The zinc layer acts as a sacrificial anode, protecting the underlying steel from corrosion. It provides long-term protection against rust and other forms of corrosion, even in outdoor or humid environments.

Colour

Default: We offer a standard colour option as the default. However, we also provide the flexibility to customize the colour according to customer requirements. This allows our customers to match the cable tray with the aesthetic of their building or installation environment.

Thickness

Range: 0.6 – 2.0mm: The thickness of the wire mesh cable tray can be selected within this range. A thinner thickness of around 0.6mm may be suitable for applications with lighter cable loads, while a thicker 2.0mm thickness is more appropriate for heavy-duty applications where higher strength and load-bearing capacity are required.

Length

Standard Lengths: 6000mm, 3000mm, 2000mm: These standard lengths are available to meet common installation requirements. Additionally, we can customize the length according to the specific needs of our customers. For example, in a large-scale industrial installation, longer lengths may be preferred to reduce the number of joints, while in smaller spaces, shorter customized lengths can be more practical.

Width

Range: 25 – 600mm: The width of the cable tray can be chosen within this range. Narrower widths of around 25mm may be used for organizing a small number of thin cables, while wider widths of up to 600mm can accommodate a large bundle of cables, including power cables, communication cables, etc. Customized widths are also available to fit the cable-laying requirements of different projects precisely.

OEM Service

Available: We offer OEM services, which means that we can produce wire mesh cable trays according to our customer’s specific designs, specifications, and branding requirements. This service is beneficial for customers who have unique installation needs or want to brand the cable trays with their logo.

Specification Example

200*100*3000*2mm: This specification indicates a cable tray with a width of 200mm, a height of 100mm, a length of 3000mm, and a thickness of 2mm. Such a specification is suitable for medium-sized cable-laying projects, where a certain amount of cable volume needs to be supported.

Production Capacity

100000 Ton: Our large production capacity ensures that we can meet the demands of large-scale projects. Whether it is a major industrial expansion or a large-scale commercial building project, we have the ability to supply the required quantity of wire mesh cable trays in a timely manner.
